CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315/433/868/915MHZ
Quick take
This CC1101 sub-GHz transceiver module is designed for makers and IoT builders who want flexible frequency coverage and bidirectional RF control in a small package. It supports 1.8V to 3.6V operation, SPI programming, 2-FSK/GFSK/MSK modulation, and includes a 64-byte RX/TX FIFO. The biggest practical drawback is that getting it running depends on your firmware and wiring, and there have been occasional reports of pin damage on arrival.
Pros and cons
Pros
- Multi-band capability and programmable working frequency (sub-GHz ranges covering common 315/433 and higher ISM bands).
- Low-voltage operation (1.8V to 3.6V) that suits many microcontroller setups.
- Hardware features aimed at reliable links, including CRC error detection and FIFO buffers for RX and TX.
- Works with common maker workflows via SPI and supports multiple modulation types (2-FSK, GFSK, MSK).
Cons
- Setup can be non-trivial, especially if you are relying on Arduino or different board variants.
- Build and condition can vary at delivery, with at least one report of a bent pin and limited pin protection.
- Real-world range depends heavily on antenna, frequency choice, and power settings, so it is not a guaranteed upgrade from legacy gear.
What buyers think
Buyer-review evidence is limited, but the recurring themes are encouraging for hands-on RF projects. Several buyers report that the module successfully integrates into existing 433MHz-style workflows (for example, converting older RF gear to modern controller stacks) and that it provides solid connectivity when configured correctly. On the downside, there are occasional notes about firmware initialization differences across board types and a report of a bent pin on arrival, which points to the importance of checking the pins immediately after delivery.
What it is (and why you would choose it)
The CC1101 is a popular sub-GHz RF transceiver chip often used in remote control, sensor networks, and custom IoT links. This module pairs the CC1101 with an SMA antenna connector and is meant to be programmed over SPI, giving you control over frequency, modulation, and transmit settings. If your goal is to build or modernize an RF system, this is attractive because it is not locked to a single fixed frequency band, and it includes practical RF link features like CRC checking and buffering.
Key specs that matter for buying
Frequency coverage and operating voltage
It supports the CC1101 family frequency ranges, with continuous frequency band expansion described for the chip in the 387-464 MHz and 779-928 MHz regions, and common 315/433-adjacent use cases supported when configured appropriately for your target frequency plan. The module is designed for a supply voltage range of 1.8V to 3.6V DC, which makes it flexible for many microcontroller platforms.
Transmit power, current, and link reliability features
Maximum transmit power is listed as 10 mW (about +10 dBm), and instantaneous working current is described as under 30 mA. For reliability, the CC1101 includes hardware CRC error detection. The module also provides separate 64-byte RX and TX data FIFO buffers, which can help when your firmware needs to handle bursts of data without immediately servicing the radio every byte.
Modulation support and interface
Support includes 2-FSK, GFSK, and MSK modulation. Working frequency and output power are programmable via SPI, and the module includes features like RSSI signal strength detection and carrier sensing. That means it is well suited for custom RF protocols where you are not strictly limited to off-the-shelf “remote control only” behavior.
Setup and integration considerations
Where buyers typically need to plan ahead is the integration layer. Because the radio is SPI-programmed and frequency/power are configuration driven, you will want to confirm your software stack can initialize the chip correctly for your specific board and pin mapping. Some buyers note that Arduino-style firmware initialization may need different handling across board variants. Practically, that means you should budget time for wiring verification and configuration tweaks, especially if you are targeting a non-default frequency like 303 MHz or specific remote-control-compatible settings.
Also, since this is an SMA antenna design, range and stability are influenced by the antenna you use and how it is mounted. If you are trying to match or exceed a legacy RF device, keep expectations realistic, tune for your frequency, and use an antenna setup appropriate for that band.
Pros and cons
Pros
- Good fit for sub-GHz maker projects that require programmable frequency and output power.
- Hardware assistance for link integrity (CRC) and buffering (64-byte RX and TX FIFO).
- Low-voltage operation (1.8V to 3.6V) and SPI controllability make it flexible across microcontroller builds.
- Multiple modulation types supported (2-FSK, GFSK, MSK).
Cons
- Firmware initialization and board differences can add friction during setup.
- Shipping condition may be inconsistent, including a report of a bent pin and limited pin protection.
Who should buy it
- Hobbyists and makers building DIY sub-GHz remotes, sensor links, or custom RF protocols.
- Developers comfortable with SPI integration and radio configuration (frequency, modulation, power, and timing).
- People modernizing legacy RF gear (for example, pairing with newer controllers) where a flexible transceiver is preferable to single-purpose modules.
Who should avoid it
- Buyers who want a plug-and-play RF solution with minimal configuration, because this module requires proper setup to match your target protocol and frequency plan.
- Anyone who cannot handle basic troubleshooting of wiring and firmware initialization.
- Shoppers needing guaranteed “arrive in perfect condition” hardware, since there are mentions of pin protection and bent-pin delivery issues.
Verdict
The CC1101 wireless transceiver module with SMA antenna is a strong option if you want programmable sub-GHz RF capability for an IoT or remote-control project and you are willing to do the setup work. It offers useful built-in radio features (CRC, RSSI, carrier sensing, FIFO buffering) and flexible modulation support, but buyers should plan for firmware configuration effort and should inspect the pins immediately after receiving the module.
View latest price
FAQ
Is the CC1101 module only for 433 MHz?
No. The CC1101 family supports programmable working frequencies across sub-GHz bands. This module is intended for projects that may use 315/433-style setups and higher ISM ranges, depending on how you configure it.
What voltage does this module need?
It is designed to operate on a supply range of 1.8V to 3.6V DC.
How do you connect it to a microcontroller?
It is programmed via SPI. You will wire it to your controller’s SPI pins and then configure frequency, modulation, and output power in your software.
Does it support both transmit and receive?
Yes. The module includes separate 64-byte RX and TX FIFO buffers and supports two-way RF operation.
What is the biggest risk for new users?
Setup complexity. Getting it working reliably depends on correct wiring and proper initialization/configuration for your specific microcontroller and firmware approach.
Is it good for replacing parts in older RF projects?
It can be a good fit when you need a configurable sub-GHz transceiver to modernize an older RF system. Range and compatibility still depend on the exact frequency, modulation settings, and antenna setup.
Specifications
| Product Title | CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315/433/868/915MHZ |
|---|---|
| Category | Electronics > Computers & Accessories > Networking Products > Network Transceivers |
| Brand | AOICRIE |
| Manufacturer | AOICRIE |
| Color | Blue |
| AntennaDescription | Radio |
| UPC | 687117711663 |
| Number of Items | 1 |
| Built-In Media | CC1101 |
| Unit Count | 1.0 Count |
| Number of Channels | 4 |
| Antenna | Radio |
| Number of Packs | 1 |
Available variants
Number Of Items
- 3
- 1
Recommended next

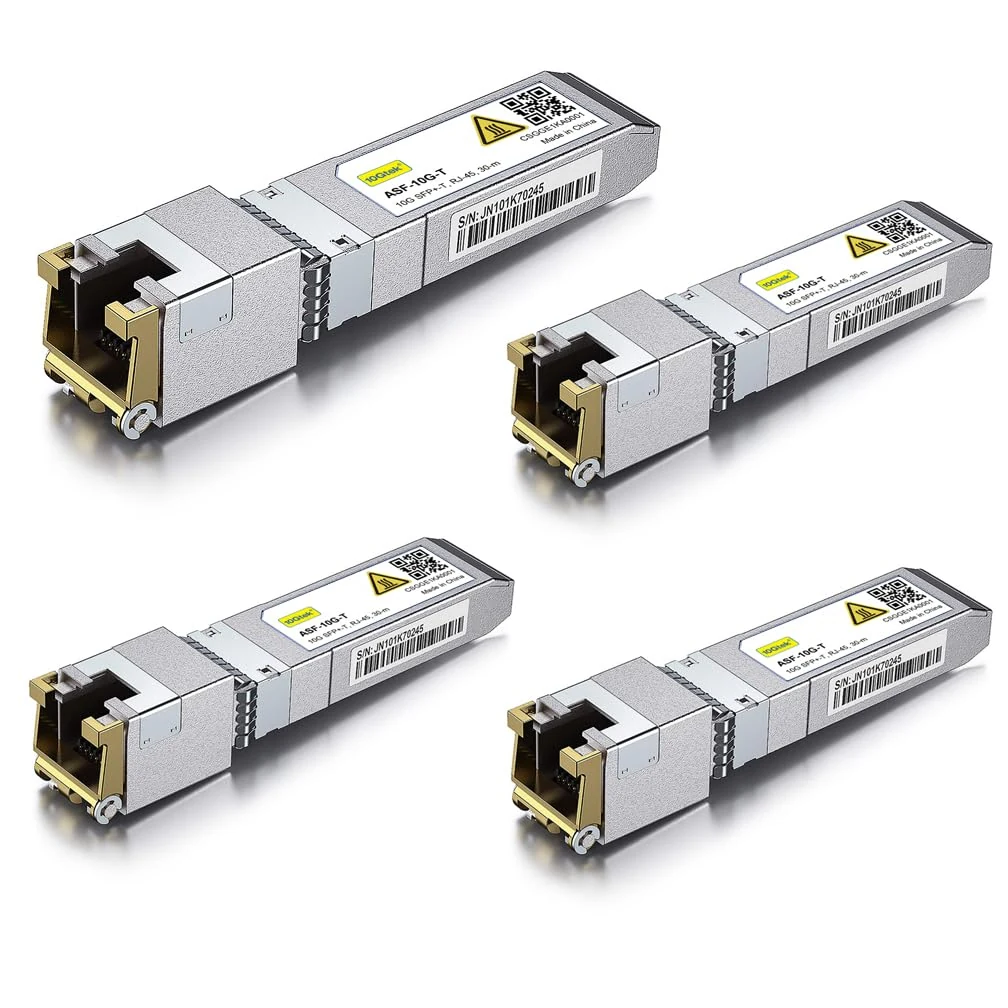

10Gtek 10GBase-T SFP+ to RJ-45 Transceiver (CAT.6a/CAT7, up to 30m)
10Gtek’s 10GBase-T SFP+ to RJ-45 transceiver is a plug-and-play option for running 10GbE over copper using CAT.6a or better, up to about 30 meters. It’s commonly chosen for home labs and small business setups when you need flexibility with SFP+ switch ports, with strong compatibility across many mainstream networking brands (and clear exceptions).

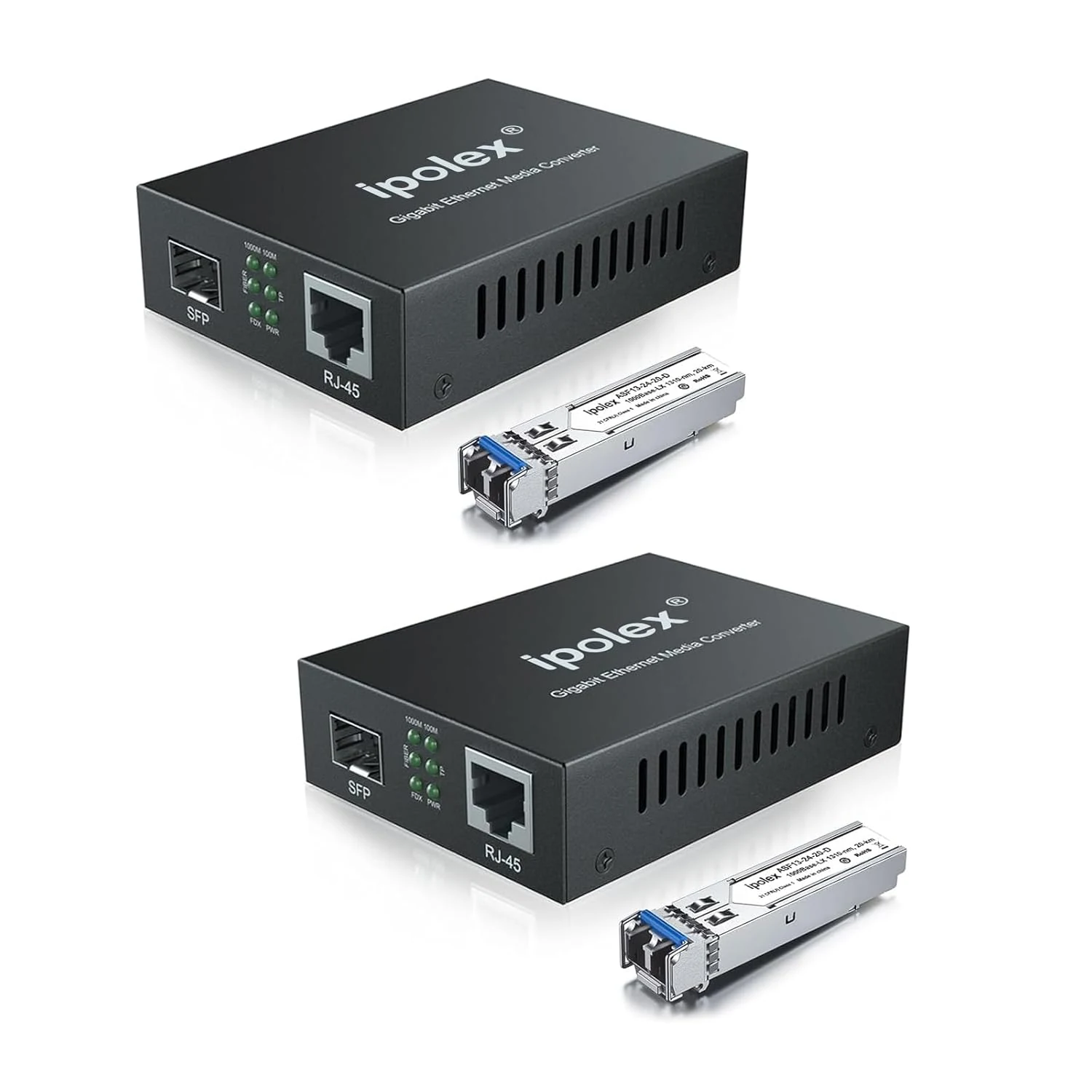

ipolex Gigabit Single-Mode LC Fiber to Ethernet Media Converter (SFP LX Modules Included)
This 2-pack converts 1000BASE-LX single-mode LC fiber (1310nm) to Gigabit copper Ethernet (RJ-45). It’s plug-and-play with hot-swappable SFP modules, and it supports single-mode links up to 20 km (SMF). The main catch is it’s built for single-mode 1310nm/LX fiber, so buyers with different fiber types or wavelengths will need a different converter.

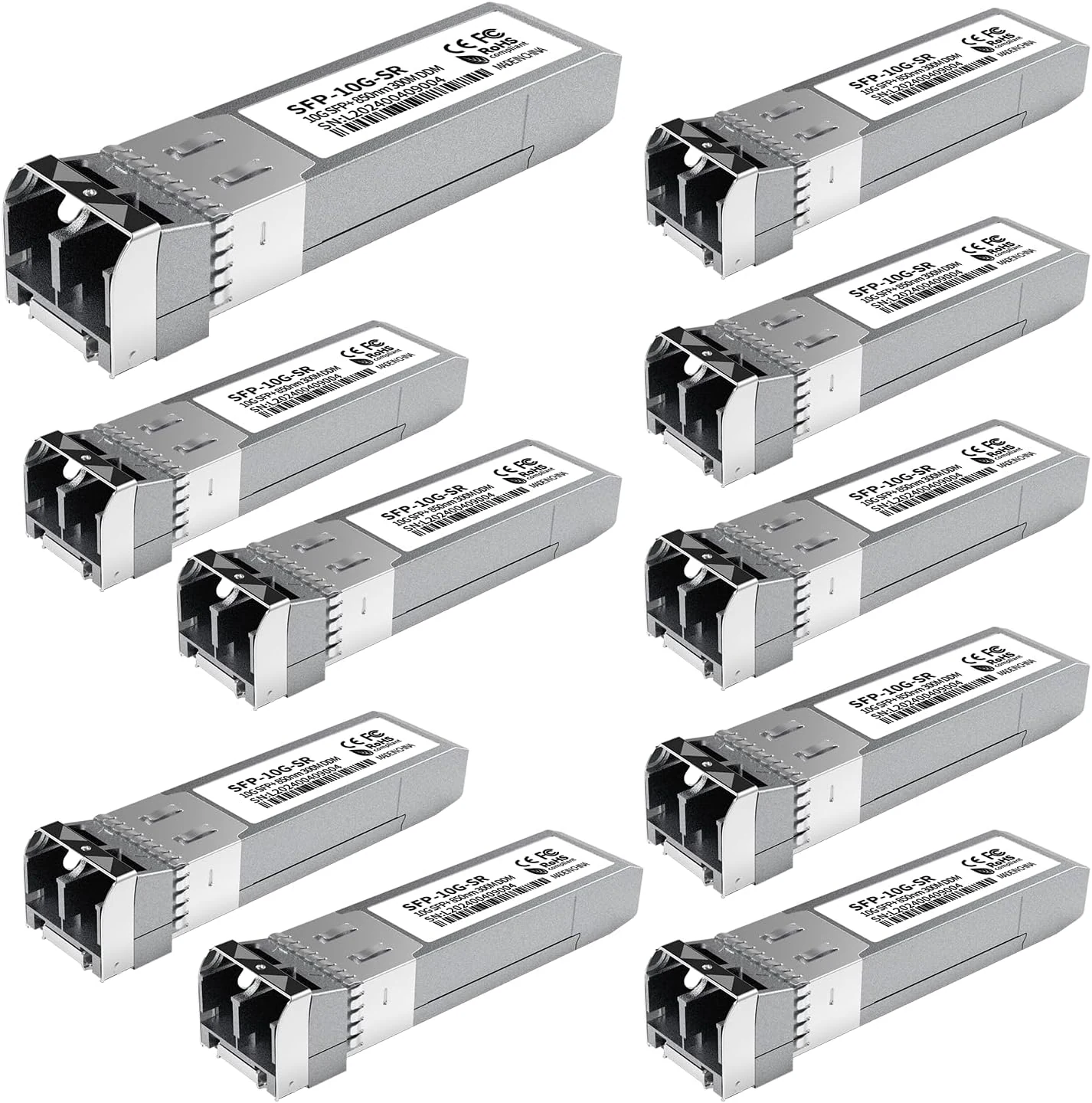

10Pack 10GBase-SR SFP+ Module, Multi-Mode LC Ethernet Transceiver (850nm, up to 400m)
A 10-pack of 10GbE SFP+ (LC, multi-mode) transceivers designed for short-reach fiber links up to 400m at 850nm. It’s built for broad compatibility with many SFP+ ports and supports hot-plug use plus DDM for link monitoring, but buyers should confirm their fiber type and switch/NIC requirements before ordering.

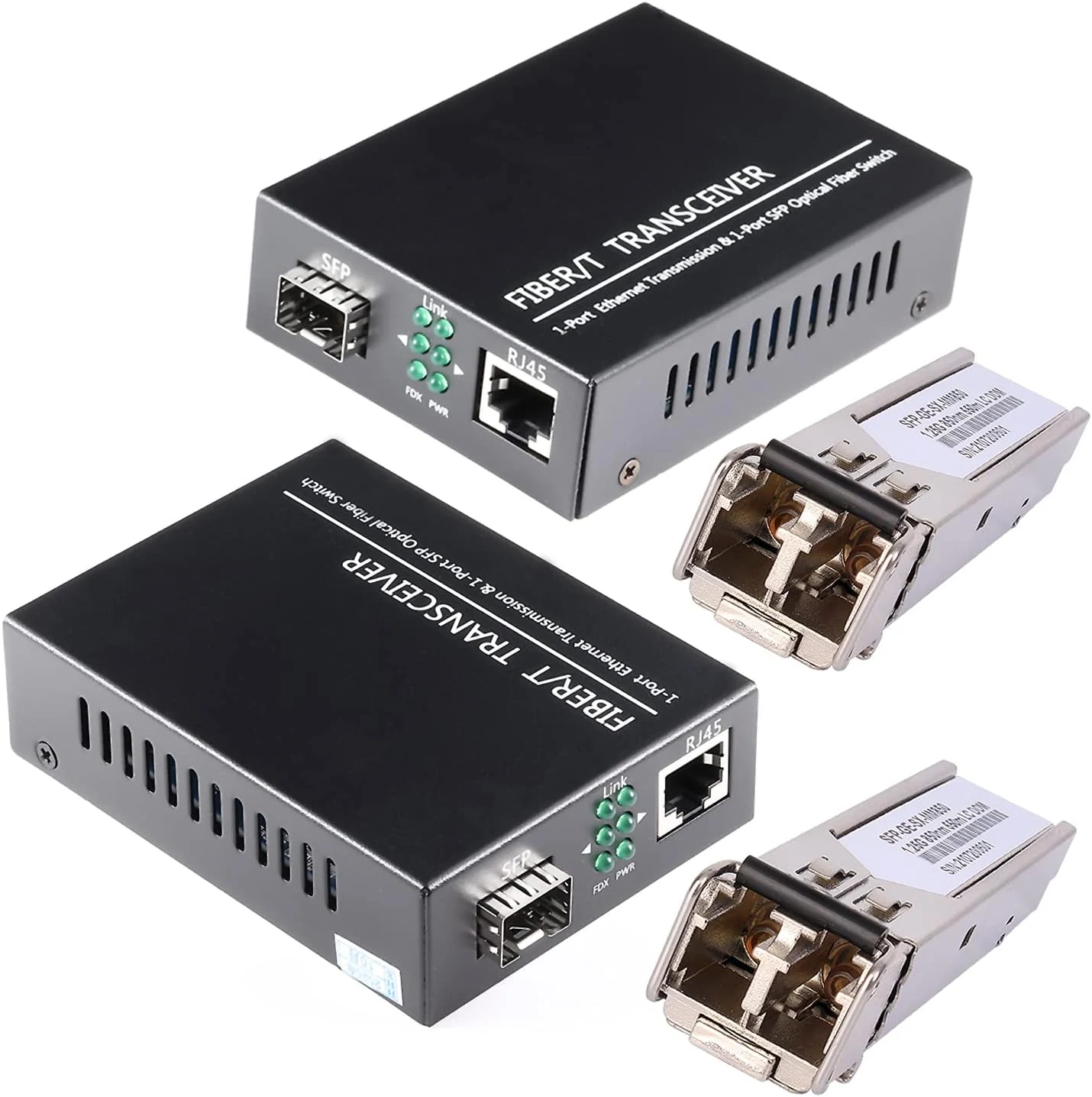

A Pair of 1.25G/s Bidi Gigabit Multi-Mode Fiber Ethernet Media Converter with 2PCS Bidi SFP LC Dual Transceiver Module Included
