Garmin Extension Cable, 12-pin
Quick take
The Garmin Extension Cable, 12-pin extends the reach of compatible 12-pin marine transducer connections, with support for 12-pin Airmar transducers using XID. It is built for outdoor use, with weather and UV resistance aimed at real boating conditions. The biggest thing to double-check is compatibility with your exact 12-pin/XID setup, since this is not a universal cable.
Pros and cons
Pros
- Made to extend compatible 12-pin transducer cable runs (12-pin Airmar transducers with XID support).
- Weather resistant and UV resistant, geared for marine outdoor exposure.
- Simple, straightforward “plug in and route” style solution when you are short on cable length.
- High buyer satisfaction overall, with many noting it worked as needed for their helm or reactor/autopilot-style installations.
Cons
- Compatibility matters, it is designed for specific 12-pin/XID setups (not a general-purpose cable).
- Connector and pinout specifics can be confusing if you are not sure what transducer system you have.
What buyers think
Buyer-review evidence for this cable is strongly positive, but it is largely focused on whether it “worked” for the intended install rather than detailed performance measurements. The most common themes are:
- It solves the length problem. Multiple reviewers describe needing extra reach to reach the helm or complete a marine-related setup.
- Setup compatibility appears to be the key. When the cable matched the right system, buyers reported smooth results.
- Perceived quality and reliability. Reviewers frequently use straightforward wording like “quality cable” and “worked perfectly,” suggesting dependable day-to-day performance.
Overall, buyer sentiment points to a simple but important role: extending a compatible Garmin 12-pin transducer connection without turning the install into a troubleshooting project. The downside is that the evidence does not replace compatibility checking, so the “right fit” still needs to be confirmed before ordering.
What this cable is for
This is a Garmin extension cable built for compatible 12-pin transducer connections that use 12-pin Airmar transducers with XID support. If your installation needs more run between the transducer and your compatible Garmin system, an extension cable can be the difference between a workable route and a forced cable placement.
It is also designed with marine conditions in mind, with weather-resistant and UV-resistant construction features intended for outdoor use.
Key specs that matter when buying
- Connection: 12-pin connection with male-to-female configuration.
- Compatibility target: 12-pin XID support (Airmar transducers with XID).
- Durability for outdoor setups: weather resistant and UV resistant.
- Model identification: model/part references include 010-12394-00 and 010-11617-32.
Who should buy it
- Boat owners and fishers who are wiring a compatible 12-pin transducer system and need additional cable length to reach the helm.
- Installers doing marine autopilot or related setups where the transducer cable run needs to be extended and the system is specifically 12-pin/XID compatible.
- Anyone prioritizing outdoor durability for a cable that will be exposed to weather and UV over time.
Who should avoid it
- Buyers who are not sure whether their transducer is 12-pin and supports XID. This cable is meant for a specific type of connection, so mismatches can cause wasted time.
- People looking for a one-size-fits-all extension. If your system uses a different pin count, protocol, or transducer family, you will likely need a different accessory.
Pros and cons in practical terms
Pros
- It makes longer cable runs feasible without changing your transducer system.
- Marine-focused build with weather and UV resistance.
- Ease of use is a recurring point when buyers say it “just worked” for their install.
Cons
- Compatibility risk is on you. If your existing setup is not the intended 12-pin/XID type, this cable will not solve the problem.
- Limited troubleshooting value. Since it is a specialized extension, it does not address issues that stem from incorrect hardware selection.
Price and availability
This Garmin 12-pin extension cable is priced as a dedicated accessory (not a generic cable), and you should expect variability based on length options and retailer pricing. Check the current listing for the latest cost and whether the cable length that fits your run is the one you want.
Alternatives to consider
If you are extending a cable run but this specific product does not match your hardware, consider alternatives using these criteria:
- Connector and pin count match: ensure your transducer system is the same 12-pin style.
- XID support where required: if your transducer relies on XID, make sure any alternative extension explicitly supports the same requirement.
- Outdoor durability: look for weather/UV resistance suitable for marine routing.
- Correct cable length: choose the length that avoids “almost enough” installs, especially when routing around the boat.
Verdict
The Garmin Extension Cable, 12-pin is a strong fit when you have a compatible 12-pin transducer setup that uses Airmar XID and you simply need more reach. Its weather and UV resistance makes it well-suited for outdoor marine routing. If you are uncertain about your transducer’s pin type or XID compatibility, confirm that first, because this cable is purpose-built and not meant to be a universal replacement.
FAQs
Will this work with any Garmin transducer?
No, this extension is designed for compatible 12-pin transducer connections that use 12-pin Airmar transducers with XID support. Check that your transducer system matches the 12-pin and XID requirements before ordering.
Is this cable suitable for outdoor boat use?
Yes. It is described as weather resistant and UV resistant, which is helpful for marine installations where cable runs are exposed to outdoor conditions.
What does “12-pin XID” mean for compatibility?
It refers to the specific transducer connection type and the XID support expected for the transducer-system pairing. If your transducer is not in the 12-pin Airmar XID-compatible category, you may need a different extension cable.
Can this help if my cable is just short at the helm?
That is one of the main reasons people buy extension cables like this. It is intended to extend the run between the transducer and your compatible Garmin equipment so you can route and connect at the helm.
How do I avoid ordering the wrong extension length?
Measure the route you need from the transducer to the connection point, then account for cable path, slack, and how the cable will be secured. Buying an extension that matches the needed run reduces the risk of being short again.
Specifications
| Product Title | Garmin Extension Cable, 12-pin |
|---|---|
| Category | Electronics > GPS, Finders & Accessories > GPS System Accessories > Chargers & Cables |
| Brand | Garmin |
| Manufacturer | Garmin |
| Model Name | Garmin |
| Color | Black |
| Item Weight | 0.22 Kilograms |
| Connector Type | TOSLINK |
| Cable Type | Composite |
| Compatible Devices | Docking Station |
| Other Special Features of the Product | Lightweight |
| Compatible Phone Models | No Compatible Phone Models |
| Connector Gender | Male-to-Female |
| Number of Pins | 12 |
| Maximum Voltage | 24 Volts (DC) |
| Connectivity Technology | 12 PIN |
| Specification Met | 12-pin, Xid |
| Indoor Outdoor Usage | Indoor |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Brand Name | Garmin |
| Customer Package Type | Rigid Box" or "Coiled in Protective Tubing |
| Model | 010-12394-00 |
| UPC | 753759158033 |
| Warranty Description | 2 year limited warranty |
| Part Number | 010-11617-32 |
| Included Components | Garmin Extension Cable, 12-pin |
Recommended next

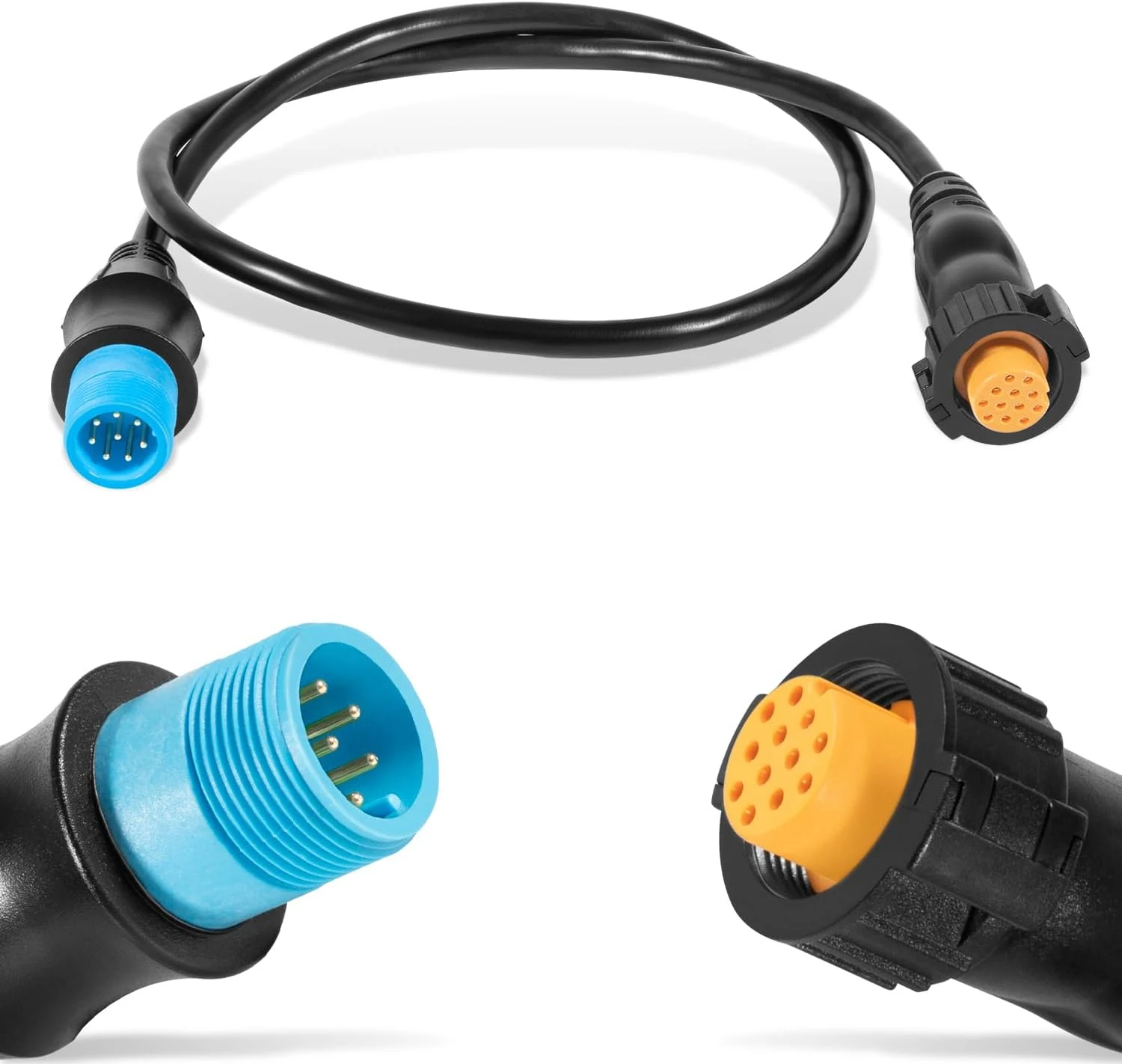

010-12122-10 Adapter, 8-Pin Transducer to 12-Pin Sounder Adapter Cable XID Compatible with Garmin
